Electric Winches

Electric Winches

At Atlas we supply electric winches for lifting and pulling applications from small compact winches to large capacity winches. A variety of rope attachments are available to suit your application. Our technical experts are on hand to suggest the most suitable winch for the job and offer purchase and hire options to suit your budget. Atlas can also supply a bespoke solution from conception to completion.

MODELS WITH ELECTRONIC FREQUENCY VARIATOR

  • SMOOTH STARTING AND STOPPING
  • SPEEDS ADJUSTABLE FROM 10% TO 100%
  • ACCELERATION AND DECELERATION PROGRAMMING SCALES
  • ACCORDING TO USE, SPEEDS PROGRAMMING
  • NOT DISCONNECTABLE PENDANT CONTROL
  • D.P.O OPTIONAL

MODELS WITH DYNAMIC POWER OPTIMISATION

Adjust the speed of the winch by choosing a model with D.P.O. These models can be used to move carriages and boats.

  • MODULAR DESIGN ALLOWS EVERY ADAPTATION
  • RUGGED AND RELIABLE PARTS
  • MECHANICAL PARTS ARE PROTECTED MAKING IT SAFE

Our Product Range Includes

Huchez TRC Elecrtric Winches

500kg, Huchez TRC501BT12

  • Dimensions – 589mm x 609mm x 408mm
  • 1st Layer Capacity – 635kgs
  • Rope Capacity – 85m x 7mm
  • Speed – 12m/min
  • Gross Weight – 95kgs
  • 240volt Single Phase

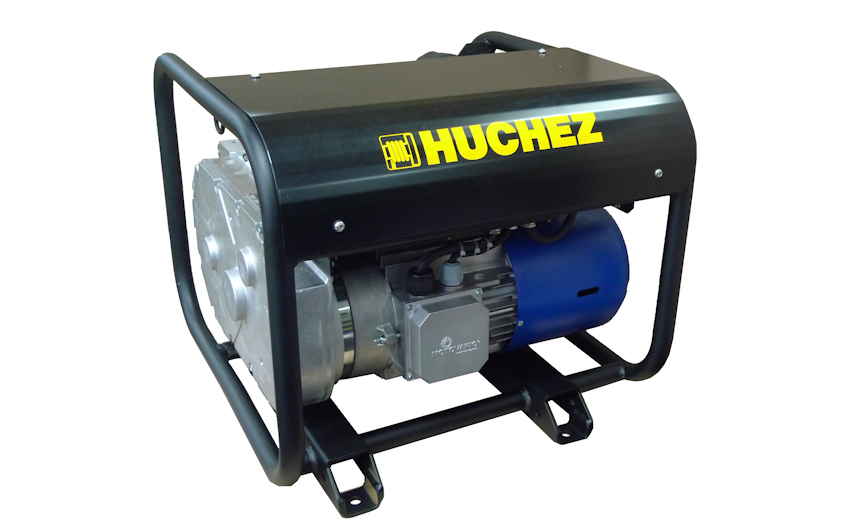

800kg, Huchez TRC803BT13

  • Dimensions – 589mm x 609mm x 408mm
  • 1st Layer Capacity – 960kgs
  • Rope Capacity – 60m x 8mm
  • Speed – 13m/min
  • Gross Weight – 100kg
  • 3phase
Huchez TRC Elecrtric Winches
hp photosmart 720

1,000kgs, AC1000 Pulling Winch

    • Dimensions – 790mm x 286mm x 231mm
    • Pulling Capacity – 1tonne
    • Gross Weight – 55kgs
    • Free-Spool Clutch Facility
    • 110volt

1,600kgs, Huchez TE1600S5BT

  • Dimensions – 788mm x 720mm x 545mm
  • 1st Layer Capacity – 2,110kgs
  • Rope Capacity – 160m x 11.5mm
  • Speed – 5m/min
  • Gross Weight – 215kgs
  • 3phase
Huchez TE1600

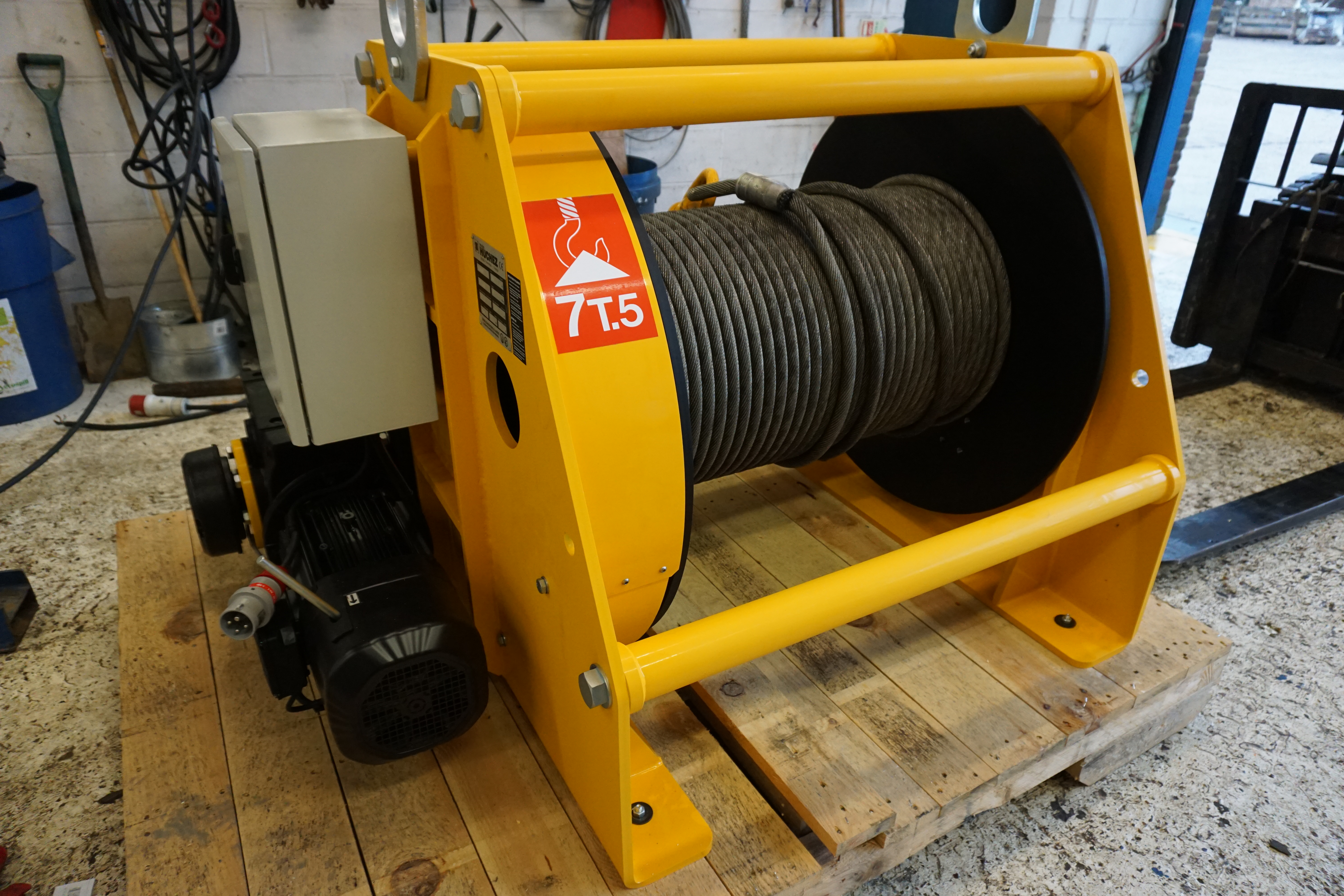

Huchez TE7500

7,500kgs, Huchez TE7500S4BT

  • Dimensions – 1,471mm x 1,200mm x 1,143mm
  • 1st Layer Capacity – 9,875kgs
  • Rope Capacity – 215m x 22mm
  • Speed – 4m/min
  • Gross Weight – 1,250kgs
  • 3phase

3.4Tonne – MT-Epi 3400

  • Dimensions – 1448 x 605 x 580
  • 1st Layer Line Pull – 3.4T
  • Gross Weight – 317.9kg
  • Rope Capacity – 198m x 12mm
coming-soon

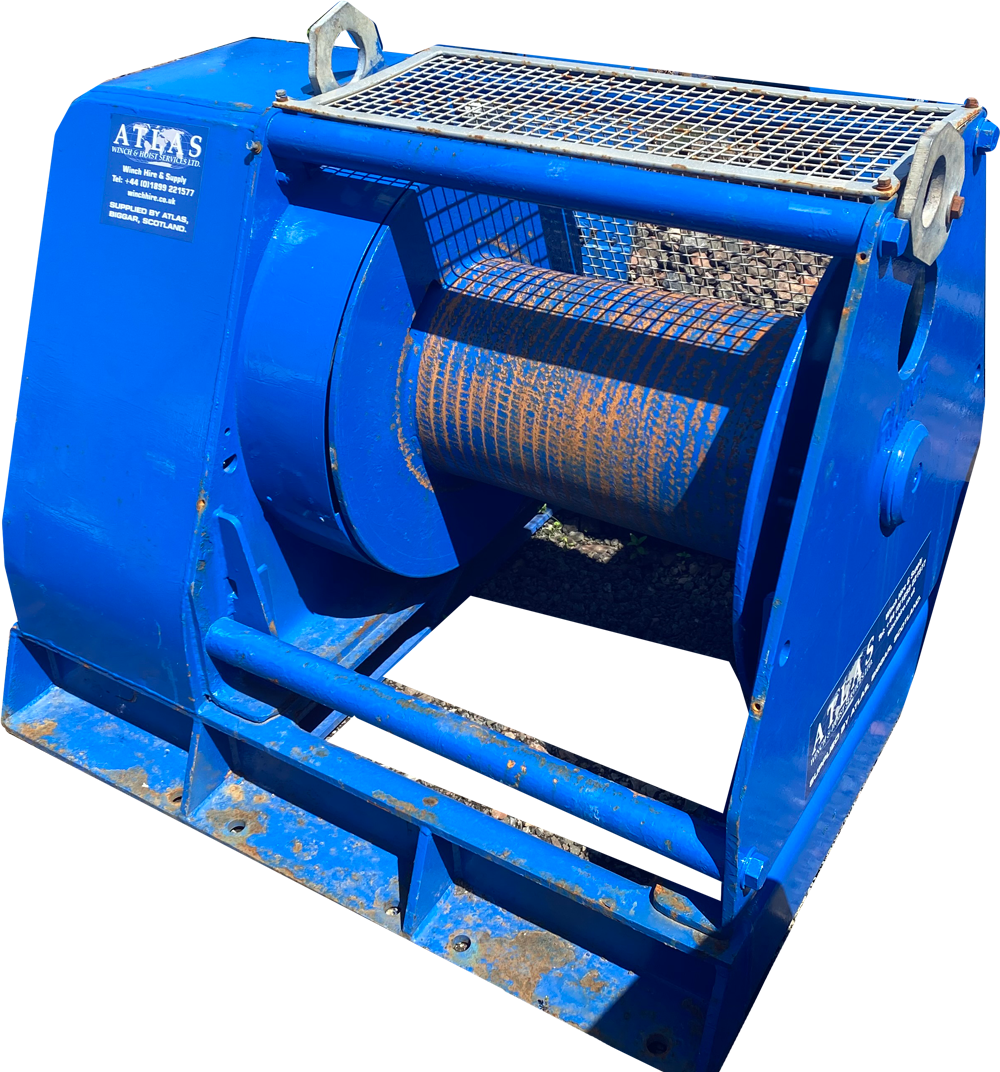

5Tonne-Electric-Winch

5Tonne – TEL5000

  • Dimensions – L(variable) x 1000 x 973
  • 1st Layer Line Pull – 6.57T
  • Gross Weight – 730kg
  • Rope Capacity – 160m x 18mm

7Tonne – HEB200

  • Dimensions –  2450mm x 1100 x
  • Line Pull – 7Tonne on 5th Layer
  • Variable Speed – 0 – 12m/min on 1st Layer
  • Gross Weight – 1800kg
  • Rope Capacity – 350m x 22mm in 6 Layers
coming-soon
coming-soon

10Tonne – MT EP 10000

  • Dimensions – 1290 x 880 x 1499
  • 1st Layer Line Pull – 10T
  • Gross Weight – 890kg
  • Rope Capacity – 118m x 24mm

11Tonne – PL11000

  • Dimensions – 2067 x 1673 x 1768
  • 1st Layer Line Pull – 14300kg
  • Gross Weight – 1940kg
  • Rope Capacity – 250m x 30mm
coming-soon
