Are you looking for an efficient method to store and utilise your cable drums on the go? At Atlas Winch Hire & Hoist Services, we can supply a full range of new cable drum trailers, high-quality refurbished machinery and used equipment. Road towable cable trailers are available to hire from 795kg, right up to the largest road-legal trailer available, the CD220 with a payload of 8,550kg. As drums of cable get larger and heavier, to reduce the number of joints in the cable, our site trailer range expands to accommodate extra wide and non-standard drum sizes and drums weighing up to 50 tonnes.
CABLE DRUM TRAILERS
HIGHWAY CABLE DRUM TRAILERS
When getting on the road, it’s essential to notify other road users of your actions, especially when carrying heavy goods. With highway cable drum trailers, you can safely show other vehicles that you are braking, giving them plenty of time to slow down behind you.
The benefits of hiring a highway cable drum:
- Payload capacities range from 795kg to 5,050kg on single axle units, and 8550kg on twin axle cd220
- Trailers to suit drum widths up to 1,7300mm
- All cable drum trailers in our highway range are equipped with braking and lighting systems which conform with EEC directives
- All SEB cable drum trailers are fitted with hydraulic hand pump operated lift/lower systems as standard
- Assist drum drive available on many models
| Technical Specifications | ||||||
| Trailer
Model |
Payload
(kg) |
Gross Vehicle Weight (kg) | Max Drum Width (mm) | Max Drum Diameter (mm) | Spindle Diameter
(mm) |
Type |
| CD20 | 830 | 1,100 | 1,075 | 1,070 | 50 | Highway |
| CD32 | 1,200 | 1,600 | 1,375 | 2,100 | 50 | Highway Range |
| CD40 | 1,500 | 2,000 | 1,250 | 2,200 | 50 | Highway Range |
| CD60 | 2,430 | 3,150 | 1,280 | 2,500 | 76 | Highway Range |
| CD70 | 2,770 | 3,500 | 1,280 | 2,500 | 76 | Highway Range |
| PT70 | 2,720 | 3,500 | 1,600 | 3,200 | 76 | Highway Range |
| PT60 | 2,380 | 3,150 | 1,710 | 3,200 | 76 | Highway |
| BKT27 | 2,680 | 3,500 | 1,720 | 2,800 | 70 | Highway |
| CD130 | 5,350 | 6,650 | 1,470 | 2,860 | 76 | Highway |
| CD220 | 8,750 | 10,850 | 1,730 | 3,660 | 101 | Highway |
*Models available with Adjustable Width to suit larger/non-standard drums
SITE TRAILERS
Moving substantial cables need not be difficult with site trailers, available for hire from Atlas Winch Hire & Hoist Services. These trailers are great for on-site use, trailing heavy cables with ease to the locations there are needed.
The benefits of hiring site trailers:
- Payload capacities of 3,000kg to 4,800kg across the single, twin and multi-axle ranges
- Able to accept drum widths up to 2,800mm
- Larger than highway cable drum trailers, most fitted with air brake systems
- Hand parking facilities
- Basic vehicle lights
- Can accommodate drum sizes up to 2,800mm wide & 5,000mm DIA
- Maximum payload of 48,000kg
- Assist drum drives available on many models
| Technical Specifications | ||||||
| Trailer
Model |
Payload
(kg) |
Gross Vehicle Weight (kg) | Max Drum Width (mm) | Max Drum Diameter (mm) | Spindle Diameter
(mm) |
Type |
| CD130* | 5,350 | 6,650 | 1,470 | 2,860 | 76 | Site Use Only |
| CD250 | 10,000 | 11,900 | 2,400 | 3,500 | 89 | Site Use Only |
| CD360 | 15,000 | 18,500 | 2,400 | 4,540 | 127 | Site Only |
| CD500* | 20,000 | 23,500 | 2,400 | 4,600 | 127 | Site Use Only |
| CD700* | 30,000 | 35,000 | 2,400 | 4,800 | 152 | Site Use Only |
*Models available with Adjustable Width to suit larger/non-standard drums
Other Available Trailers
If you’re looking for a trailer with different specifications, hire one of our following available trailers. We have a range of products to hire, so no matter your needs, shop with Atlas Winch Hire & Hoist Services.

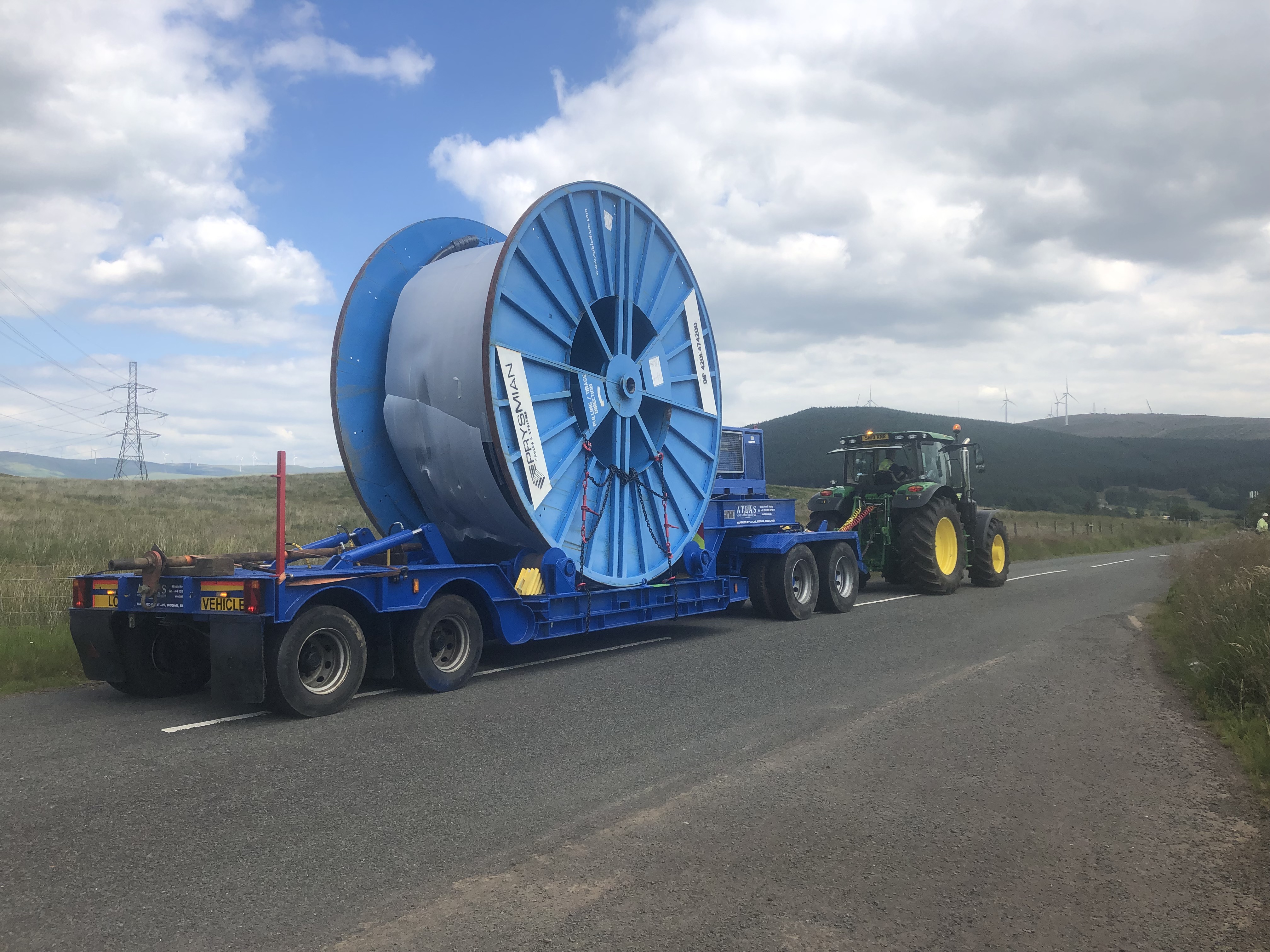

Under Roller Trailer
- Max Drum Weight – 20 Tonne
- Dimensions – 10.9m x 6m x 3.1m – Fully Extended
- Drum Diameter – 5m
- Drum Width – 2.89m -4.49m
- Hydraulic Supply
- Air Brakes Fitted
CD980 Cable Drum Trailer
- Max Drum Weight – 50 Tonne
- Dimensions – 10.9m x 6m x 3.1m – Fully Extended
- Drum Diameter – 5m
- Drum Width- 2.89m -4.49m
- Hydraulically Adjustable Width
- Drum Drive Assist
- Air Brakes Fitted
Tracked Triple Drum Trailer
- Max Drum Weight- 3.5 Tonne (x3)
- Drum Diameter – 2.4m (x3)
- Drum Width – 1.1m (x3)
- Self-Propelled c/w Pendant Control
- Diesel HPU Fitted
Triple Drum Trailer
- Max Drum Weight- 5 Tonne/each drum
- Dimensions – 9475 x 2850 x 2600
- Max Drum Diameter – 3300mm
- Max Drum Width – 1900mm
- Hydraulic Brakes
Hammar 155H Drum Trailer
- Max Drum Weight- 34 Tonne
- Drum Diameter – 4.5m
- Drum Width – 4.0m
- Diesel HPU Fitted
- Supplied with or without tractor unit
- Can be supplied with suitable under rollers.
Get In Touch
If you’re interested in hiring one of our trailers or purchasing one of our used products, get in touch directly with our team today for further support.
