HYDRAULIC POWER UNITS

Hydraulic Power Units

At Atlas, we offer a wide range of high-performance hydraulic powerpacks built to deliver reliable, continuous power in even the most demanding environments. Whether you’re operating in remote locations or facing tough challenges, our powerpacks are designed to keep you going.

We provide diesel, electric and petrol-powered units, ensuring we meet the needs of any application. With delivery outputs ranging from 10 to 1500 litres per minute and pressures up to 350 bar, our powerpacks are capable of handling any task. Choose from open or closed-loop systems, with a variety of control options to suit your specific needs.

Looking for a standard solution or a custom-built design for a unique project? At Atlas, we have the expertise to deliver exactly what you need.

DIESEL

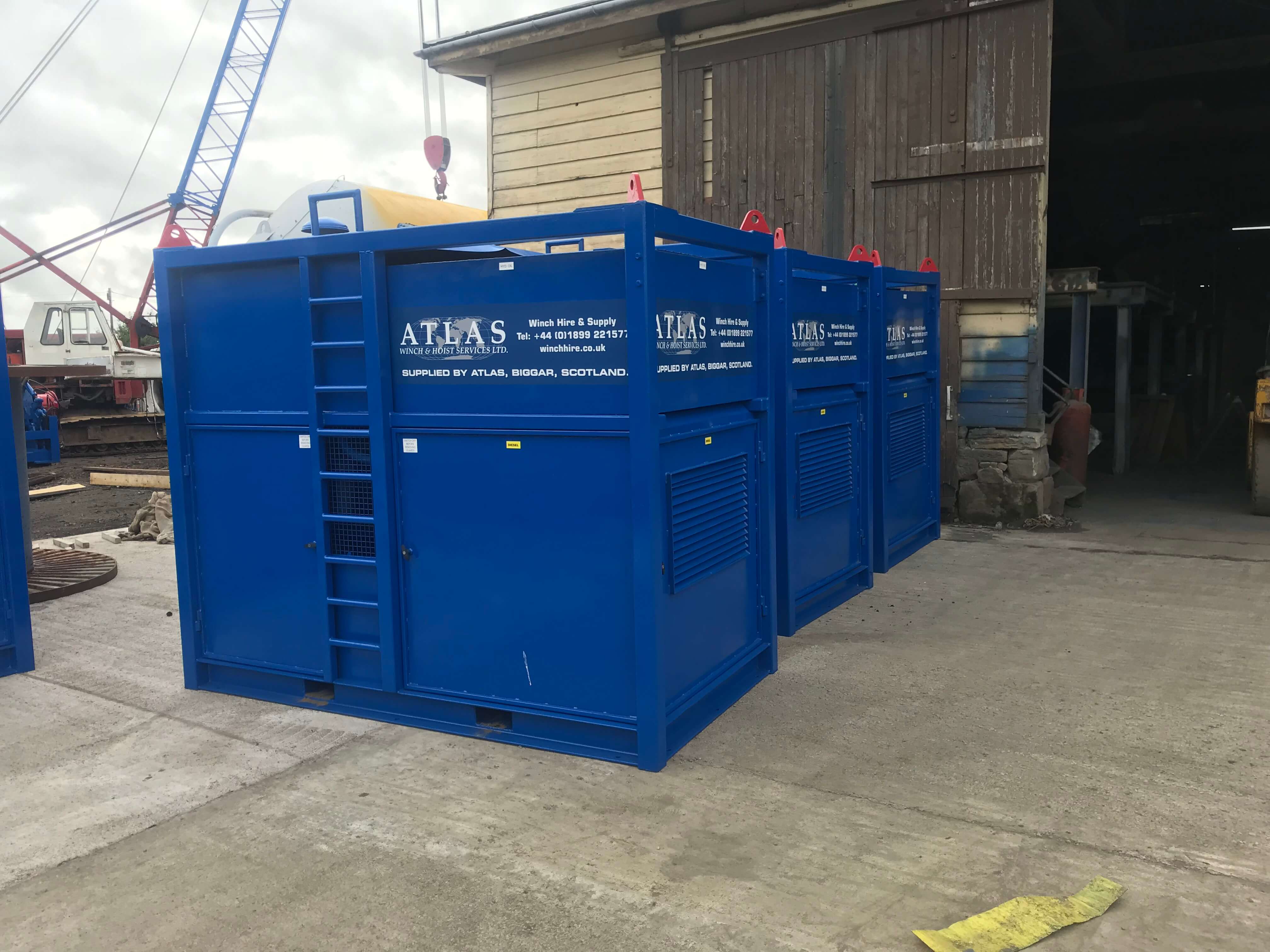

Looking for reliable Diesel Hydraulic Power Units (HPUs)? We offer a complete range with power outputs from 7.5kW to 500kW, flow rates between 10 to 1500 litres per minute, and operating pressures up to 350 bar. Whether you need high power, precise flow control or robust pressure handling, we have the perfect solution.

Talk to our experts today and discover the ideal HPU for your project.

43kw Diesel HPU

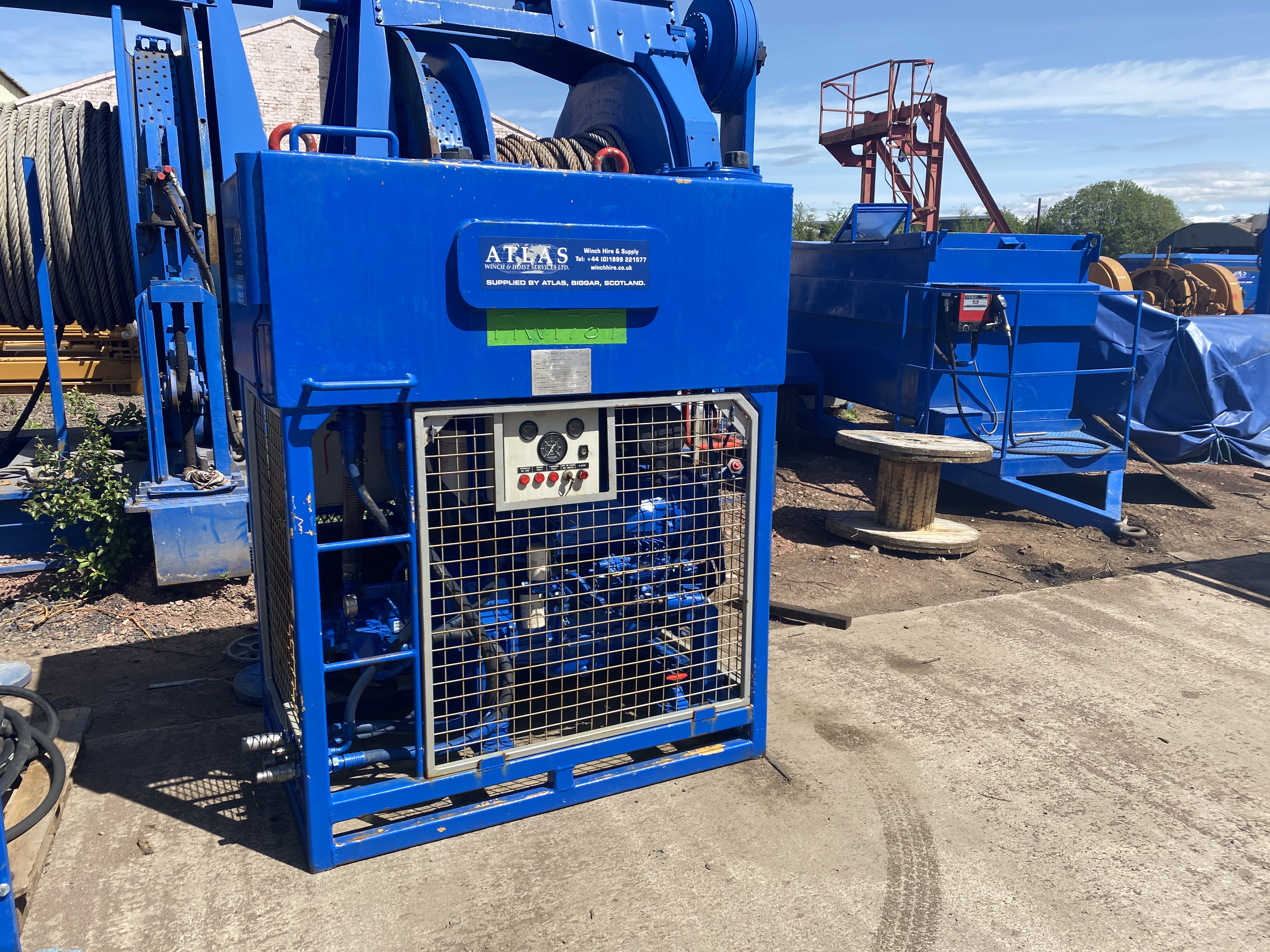

43kW Deutz Diesel HPU

  • Dimensions – 1540 x 950 x 1870
  • Weight – 1500kg – Excluding Oil

74kW JCB Diesel HPU

  • Dimensions – 2680 x 1470x 1560
  • Weight – 2650kg
74kW-Diesel-HPU
75kW-Diesel-HPU

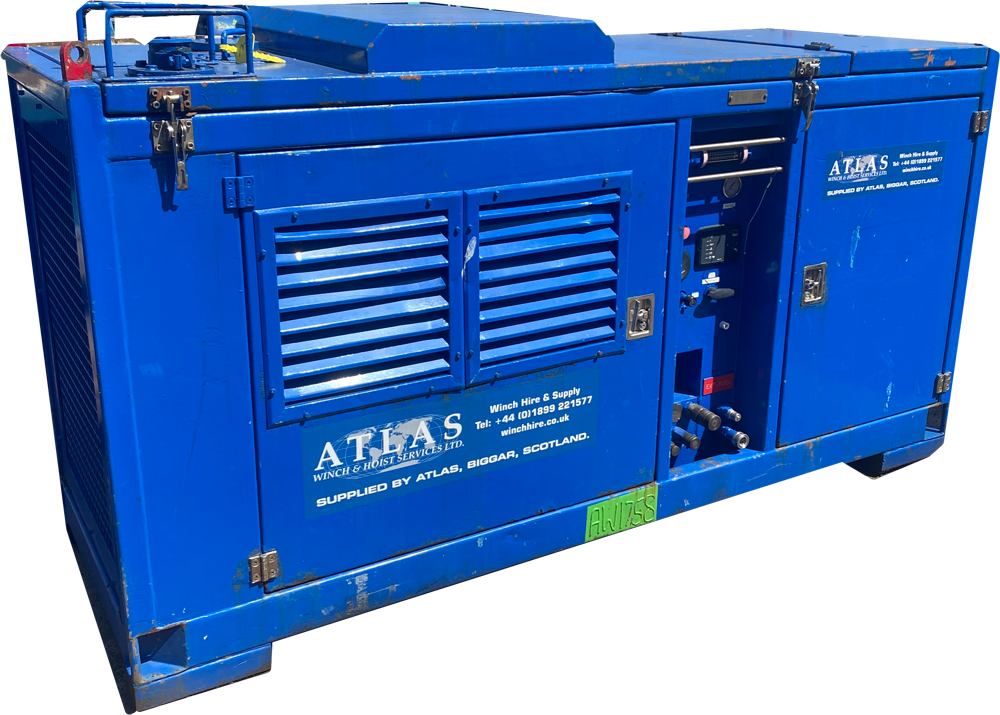

75kW Perkins Diesel HPU

  • Dimensions – 2600 x 930 x 1400
  • Weight – 1700kg – Excluding Oil

162kW Deutz Diesel HPU

  • Dimensions – 2680 x 1600 x 2400
  • Weight – 5000kg
230HP(168kW)-Diesel-HPU

168kW CAT Diesel HPU –

  • Dimensions – 33120 x 1500 x 2030
  • Weight – 4500kg

262kW CAT Diesel HPU

  • Dimensions – 3520 x 1650 x 1720
  • Weight – 6000kg
coming-soon

ELECTRIC

Skid mounted electric driven hydraulic power units, low noise level operation for a range of onshore industrial and offshore marine applications. These packs can be used to operate a range of equipment, winches, spoolers, hydraulic jacks, ‘A’ Frames, subsea tooling and cutting gear.

22kW HPU

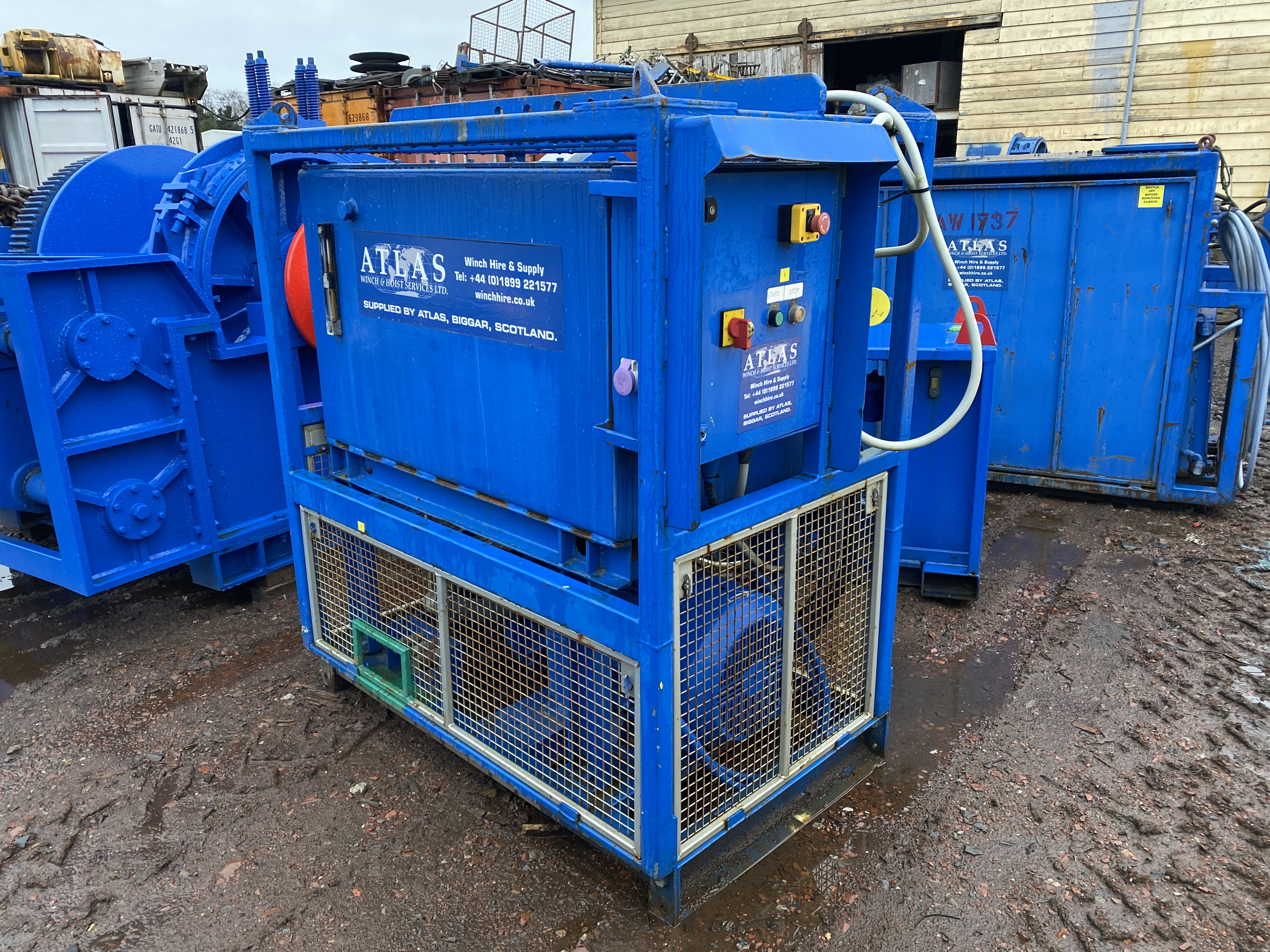

22KW HPU

  • Dimensions – 1000 x 1000 x 1700
  • Weight –

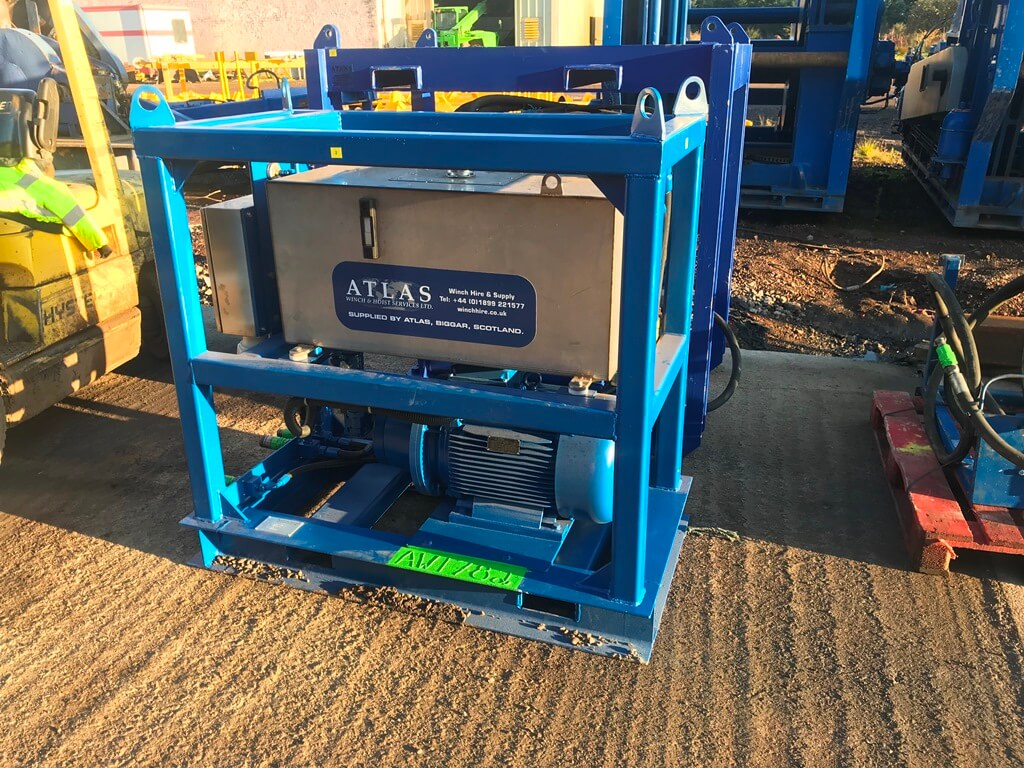

30KW HPU

  • Dimensions – 1505 x 815 x 1415
  • Weight – 550kg

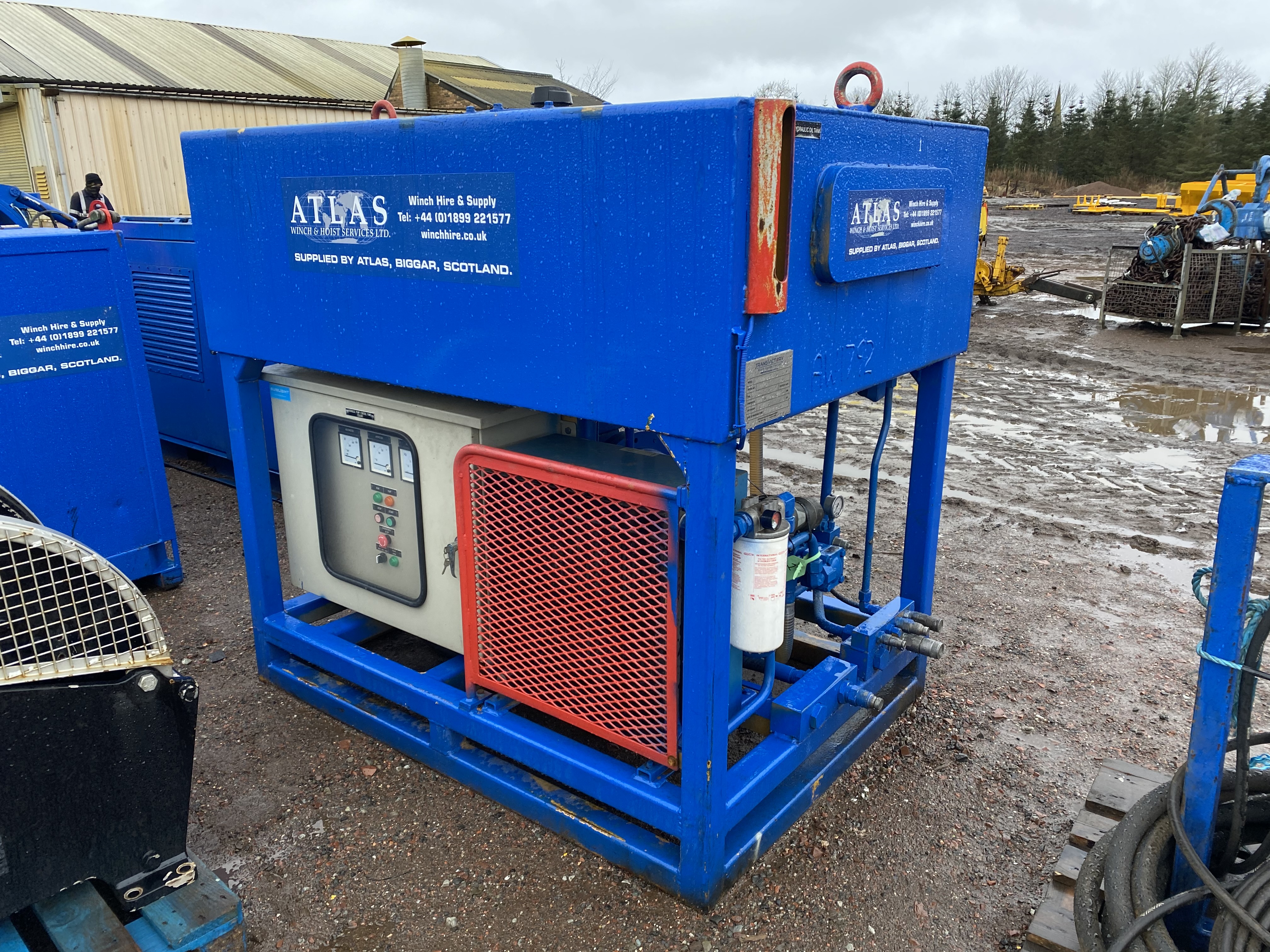

55KW Transvictory

  • Dimensions – 1235 x 1730 x 1645
  • Weight – 1,500kg
55kW HPU

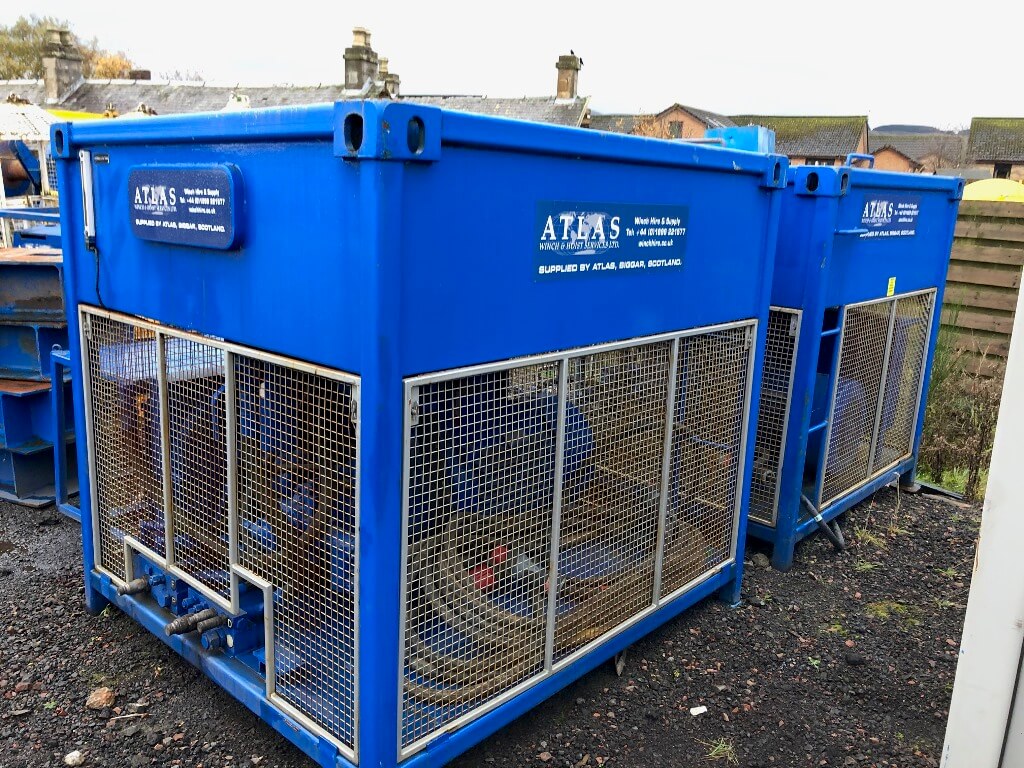

90KW Transvictory

  • Dimensions – 1350 x 1835 x 2000
  • Weight –

PETROL

Atlas has a range of small portable petrol HPU which can be supplied on their own or to power one of our small hydraulic winches or cable pushing equipment

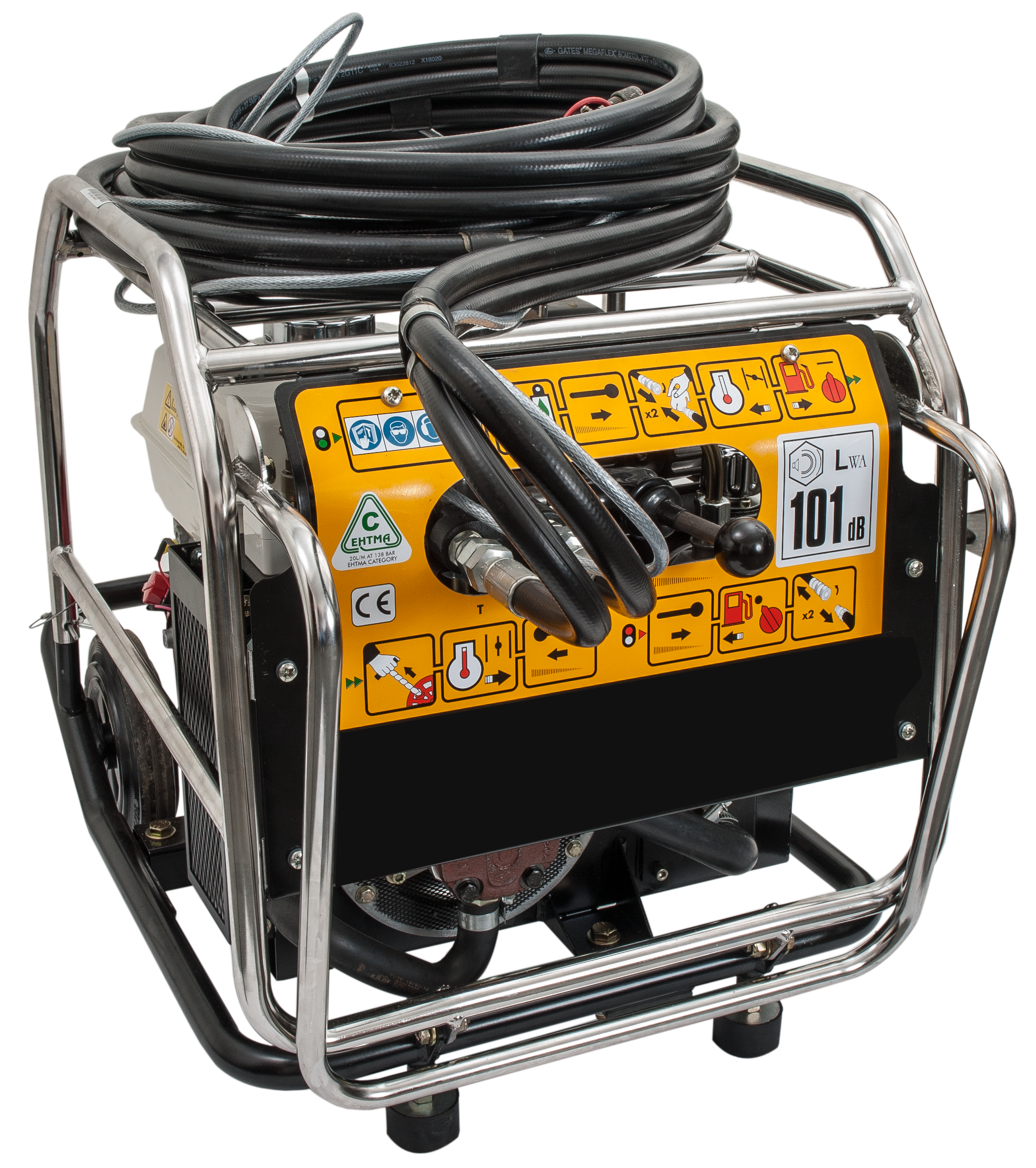

JCB Petrol HPU
