HYDRAULIC WINCHES

Hydraulic Winches

Choose Atlas for a range of hydraulic winches and power packs. These base mounted models are normally supplied within a crash frame, complete with lifting lugs. Our friendly team can provide expert advice on winch solutions to suit your specifications. We can supply closed and open loop systems to meet zoned specifications for use in hazardous environments.

HYDRAULIC WINCH RANGE INCLUDES:

  • CAPACITIES RANGING FROM 1TONNE – 400TONNE HYDRAULIC WINCHES
  • SUITABLE FOR A RANGE OF APPLICATIONS AND ENVIRONMENTS
  • MANUFACTURERS SUCH AS MAROTECHNIEK, PACCAR BRADEN, TRANSVICTORY

ADDITIONAL OPTIONS:

  • REMOTE CONTROLS
  • CONSTANT TENSION
  • MAXIMUM LOAD LIMITS
  • VARIABLE SPEED CONTROL
  • LOAD INDICATION/READ OUT
  • DISTANCE/SPEED READ OUT

500kg to 4Tonne Hydraulic Winch

We stock a range of compact hydraulic winches ranging from 500kg up to 4000kg for both lifting and pulling applications. These winches re available with a range of rope capacities and speeds. Atlas can also offer a bespoke solution from conception to completion for your project.

5T Hyd Winch

5Tonne Hydraulic Winch

  • Dimensions –
  • 1st Layer Line Pull –
  • Brake Hold Capacity –
  • Gross Weight –
  • Rope Capacity –

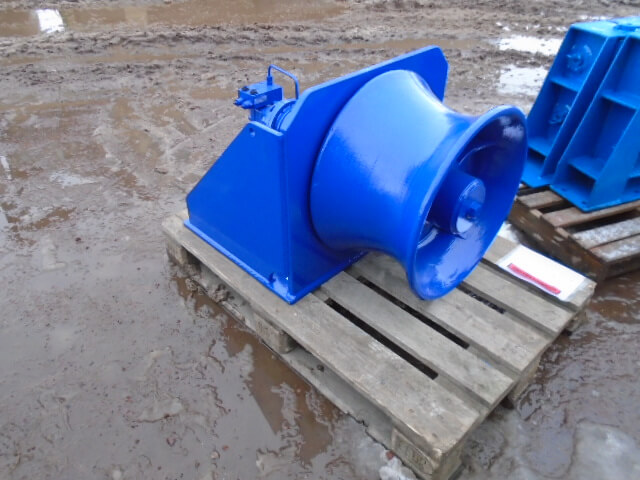

5Tonne Hydraulic Capstan Winch

  • Dimensions – 882 x 685 x 595
  • 1st Layer Line Pull – 5Tonne
  • Gross Weight – 455kg
10t HYD WINCH

10Tonne Hydraulic Winch

  • Dimensions – 1335 x 1067 x 1027
  • 1st Layer Line Pull – 10T
  • Brake Hold Capacity – 15T
  • Gross Weight – 1024.9kg
  • Rope Capacity – 180m x 28mm

20Tonne Hydraulic Winch

  • Dimensions – 2350 x 2050 x 1360
  • 1st Layer Line Pull – 20T
  • Brake Hold Capacity – 36T
  • Gross Weight –
  • Rope Capacity – 450m x 28mm

30Tonne Hydraulic Winch

  • Dimensions – 3280 x 2250 x 2220
  • 1st Layer Line Pull – 30T                      –
  • Brake Hold Capacity – 60T
  • Gross Weight –
  • Rope Capacity – 1000m x 36mm

35Tonne Hydraulic Winch

  • Dimensions – 2890 X 2205 X 1930
  • 1st Layer Line Pull – 35T
  • Brake Hold Capacity – 90T
  • Gross Weight –
  • Rope Capacity – 1000m x 38mm

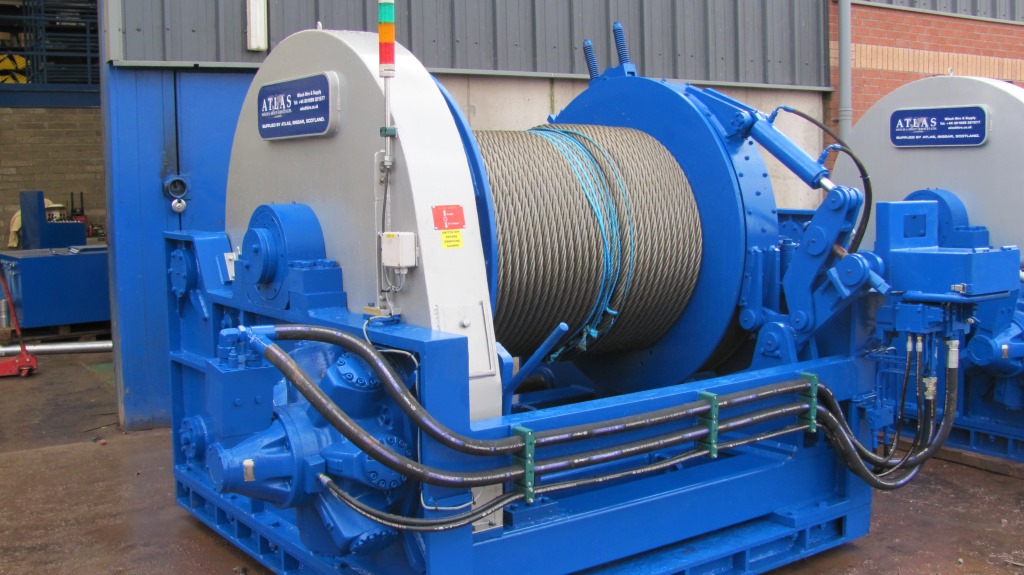

35Tonne Hydraulic Winch (2)
45Tonne Hyd Winch

45Tonne Hydraulic Winch

  • Dimensions – 3390 x 2725 x 2040
  • 1st Layer Line Pull – 45T @ 7m/min
  • Brake Hold Capacity – 120T
  • Gross Weight –
  • Rope Capacity – 2000m x 32mm

50Tonne Hydraulic Winch

  • Dimensions – 3200 x 1850 x 2700
  • 1st Layer Line Pull – 75Tonne
  • Rope Capacity –

60Tonne Hydraulic Winch

  • Dimensions – 3480 x 2860 x 2500
  • 1st Layer Line Pull – 60T @ 10m/min
  • Brake Hold Capacity – 130T
  • Gross Weight –
  • Rope Capacity – 1000m x 50mm

80Tonne Hydraulic Winch

  • Dimensions – 3480 x 2860 x 2500
  • 1st Layer Line Pull – 80T @ 8m/min
  • Brake Hold Capacity – 130T
  • Gross Weight –
  • Rope Capacity – 1000m x 50mm
coming-soon

130Tonne Hydraulic Winch

  • Dimensions – 3230 x 3140 x 2170
  • 1st Layer Line Pull – 130T
  • Brake Hold Capacity – 150T
  • Gross Weight –  20.4T
  • Rope Capacity –  20 – 120mm dia DYNEMA Rope

150Tonne Hydraulic Winch

  • Dimensions – 4400 x 3250 x 3260
  • 1st Layer Line Pull – 150T
  • Brake Hold Capacity – 250T
  • Gross Weight – 27T
  • Rope Capacity – 1290m x 58mm
