Air Winch Options

Air Winch Hire: The Benefits

Air winches are capable of pulling and lifting huge loads by using a pneumatic motor. Usually a pair of radial pistons use compressed air that’s directed to a set of ports. The direction of the air exerted on these ports causes the drums to rotate which makes the air winch move. The result is a stead and powerful force, capable of raising and lowering attached loads.

  • SIMPLE, ROBUST AND RELIABLE
  • SUITABLE FOR RANGE OF HAZARDOUS AND DIFFICULT ENVIRONMENTS
  • VARIABLE SPEED CONTROL ALLOWS SLOW CREEP TO FULL SPEED POSSIBLE
  • NO UNLIMITED DUTY CYCLE
  • EASY TO SERVICE, MAINTAIN AND REPAIR
  • CAPACITIES UP TO 10,000KGS
  • MANUAL BRAKED TUGGERS
  • AUTOMATIC BRAKES FOR LIFTING
  • MAN-RIDING WINCHES

AIR WINCHES APPLICATIONS

Air winches are hugely versatile because there are many scenarios where a large load needs to be moved or lifted.

  • OFFSHORE AND RIG INSTALLATIONS
  • MARINE AND SHIPPING APPLICATIONS
  • 4,6 & 8 POINT MOORING SYSTEMS
  • OIL & GAS HAZARDOUS ENVIRONMENT APPLICATIONS

We stock a range of air winch options, from portable models capable of lifting 150kg loads right the way to our 10-tonne option. Generally, the models that are capable of lifting larger loads are larger and heavier than those capable of lifting smaller loads.

Here’s a breakdown of the specifications relating to the air winches we have available:

Which Air Winches Do We Have Available?

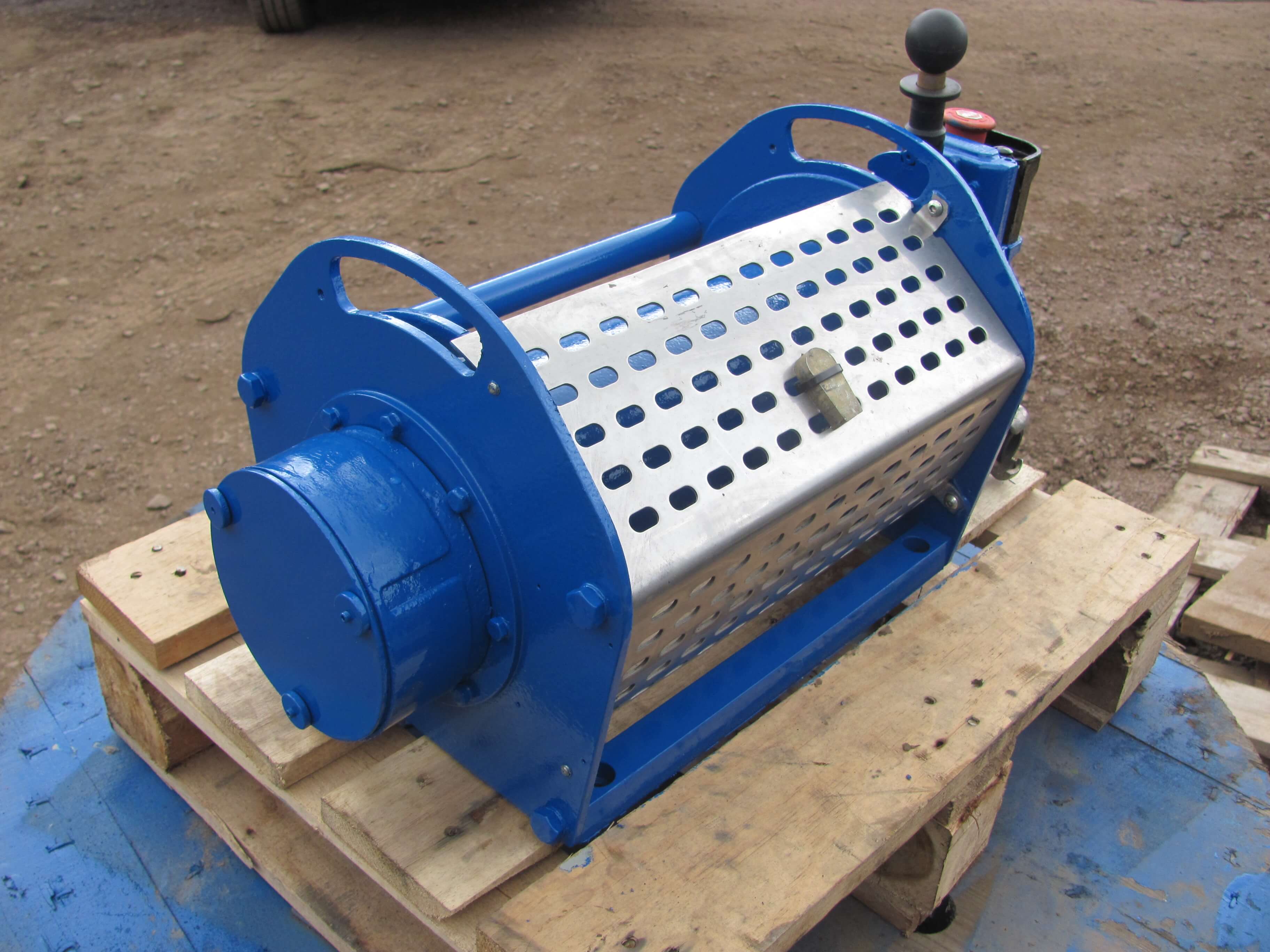

150kg to 1,500kg air winch
150kg to 1500kg Air Winch

We stock a range of compact air winches ranging from 150kg up to 1500kg for both lifting and pulling applications. These winches can hold up to 160m of Wire Rope.

2Tonne Air Winch
  • Dimensions – 1250 x 610 x 722
  • Rated Capacity – Top Layer 2T
  • Gross Weight – 386kg
  • Rope Capacity – 430m x 13mm
  • Drum Size – 12” or 24”
  • Option – Man Riding
2 tonne air winch
2.5 tonne air winch
2.5Tonne Air Winch
  • Dimensions – 1392 x 610 x 839
  • Rated Capacity – Top Layer  2.27T
  • Gross Weight – 481kg
  • Rope Capacity – 255m x 16mm
  • Option – Man Riding
5Tonne Air Winch
  • Dimensions – 1742 x 889 x 928
  • Rated Capacity – Top Layer  5T
  • Gross Weight – 849kg
  • Rope Capacity – 410m x 19mm
10Tonne Air Winch
  • Dimensions – 1615 x 1179 x 1213
  • Rated Capacity – Top Layer  10T
  • Gross Weight – 1451kg
  • Rope Capacity – 377m x 28mm
