Portable Capstan Winches

We maintain a comprehensive range of cable handling equipment – from portable petrol capstan winches to trailer mounted fibre-optic assist winches contact our specialists today

At Atlas, we can supply winches for all utility sectors including telecoms, power, water and gas. We have become specialists in this field and have the largest and most comprehensive hire fleets of its kind in the UK. Our portable capstan winches have capacities up to 10 tonnes. Bond lengths are available up to 1,000 metres. For some special applications, bond lengths in excess of 1,500 metres have been successfully used. Servicing, repair and testing is also available across the range.

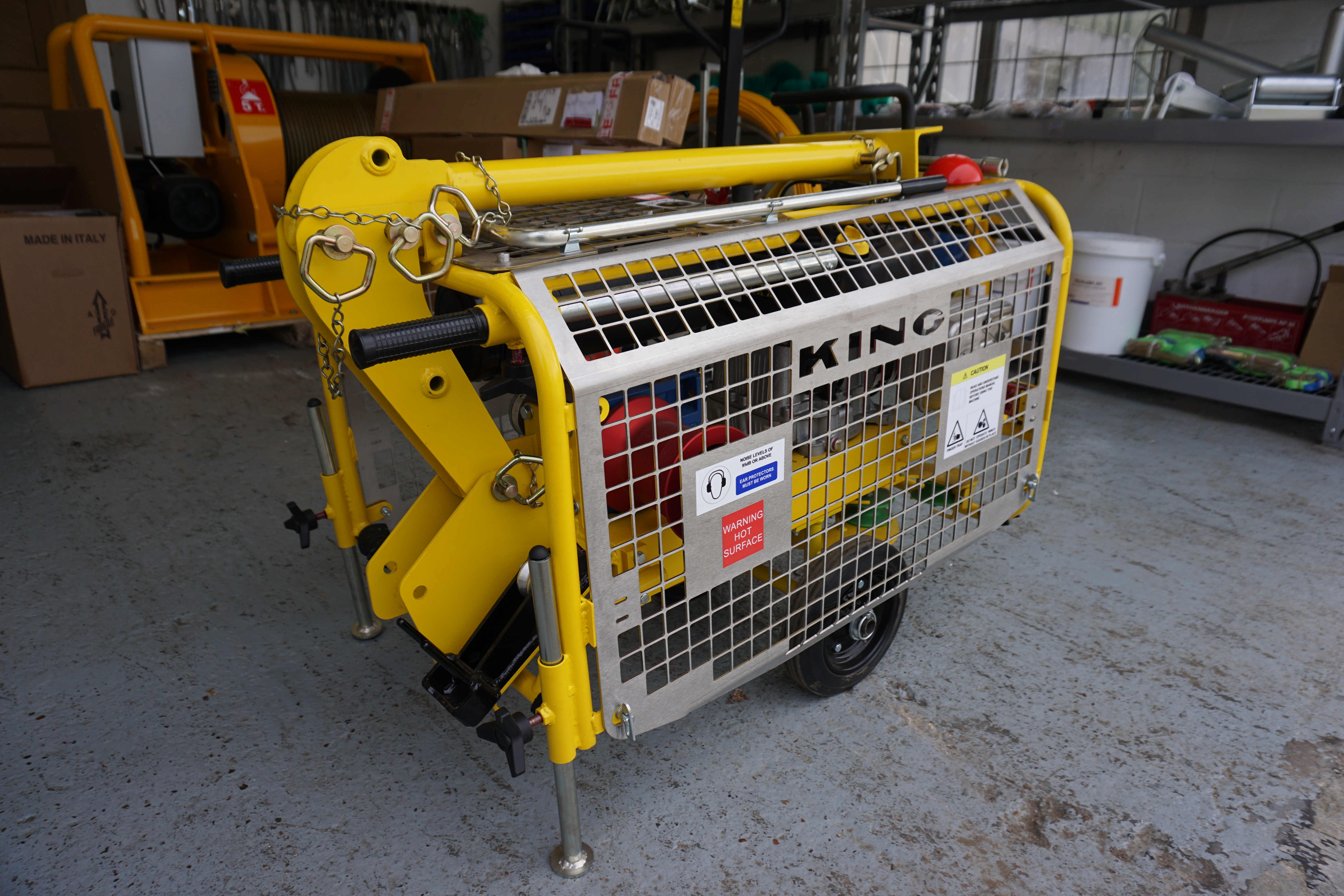

1 tonne, King KN1000

  • Dimensions – 1,105mm x 695mm x 865mm
  • Line Pull – 1,000kgs
  • Gross Weight – 120kgs
  • Petrol Engine
King KN1000 Capstan
CBS C1035 capstan

1 tonne, CBS C1035

  • Dimensions – 1,250mm x 500mm x 600mm
  • Line Pull – 1,000kgs
  • Gross Weight – 99kgs
  • Petrol Engine

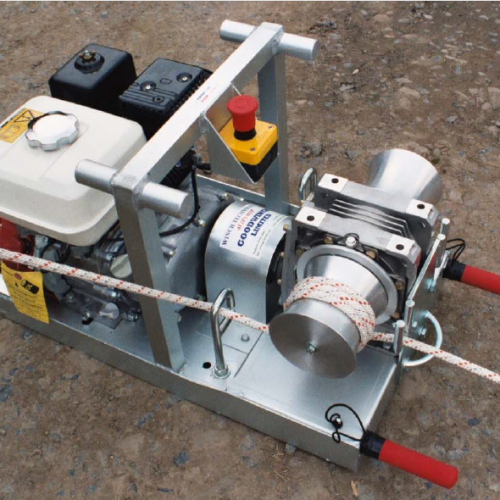

1 tonne/500kg, Twin Capstan Goodwinch PP1000

  • Dimensions – 650mmx 390mm x 420mm
  • Line Pull – 1,000kgs
  • Gross Weight – 50kgs
  • Petrol Engine
Portable-petrol-twin-capstan-winch

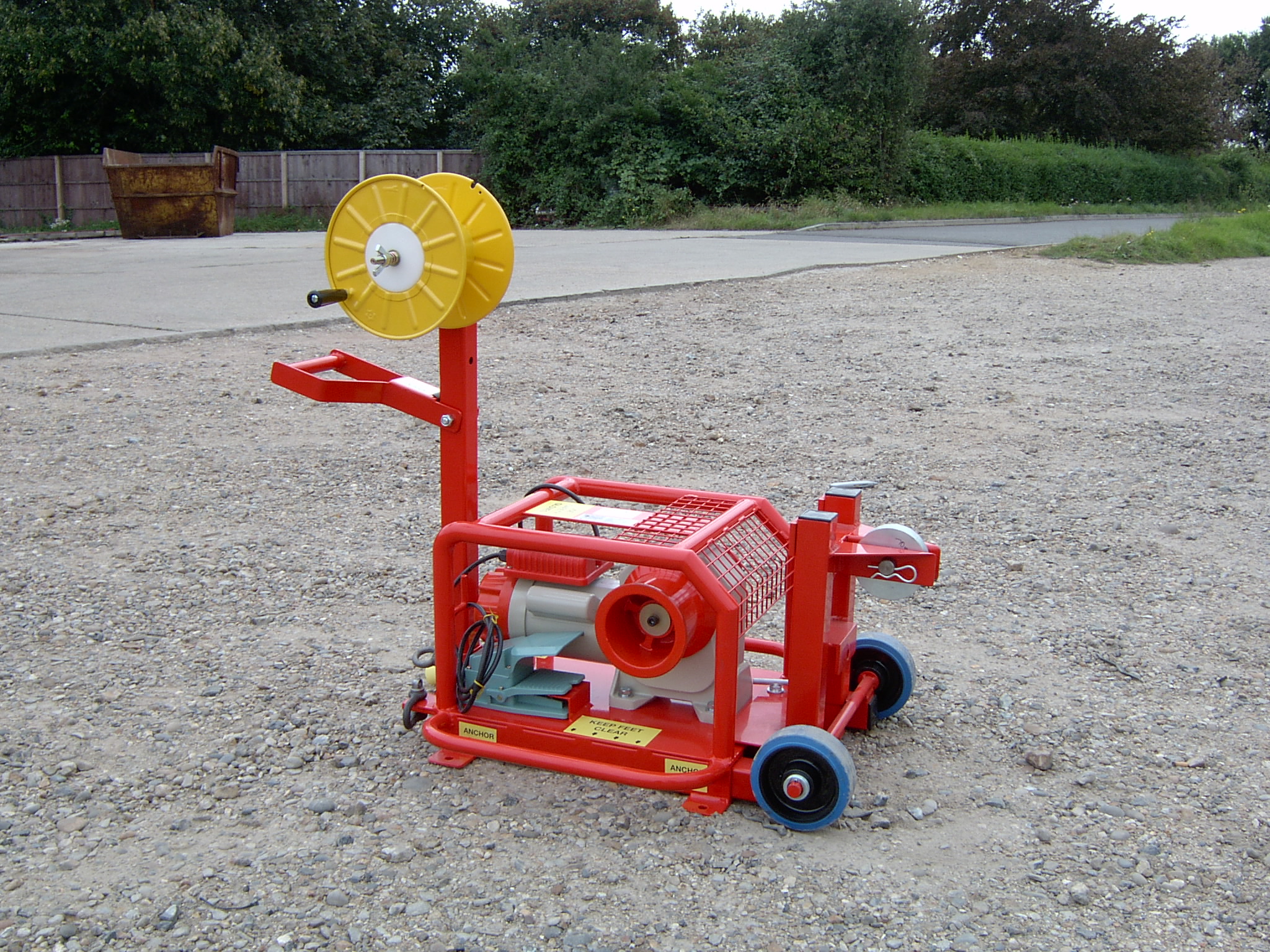

2.5 tonne/1.5tonne, Twin Capstan Cable Puller

2.5 tonne/1.5tonne, Twin Capstan Cable Puller

  • Dimensions – 655mm x 550mm x 400mm
  • Line Pull – will pull from a 2.5tonne drum
  • Gross Weight – 95kgs
  • 110volt Electric

450 kgs, AB Chance Capstan Winch

  • Dimensions – 560mm x 250mm x 225mm
  • Lifting Capacity – 1,000lbs/450kgs
  • Gross Weight – 20kgs
  • 110volt Electric
AB Chance
