Cable/Pipe Pulling Winches

If you work in the utility sector – be it telecoms, power, water or gas – look no further than Atlas Winch Hire for premium-quality winches. As industry leaders in the winch hire and hoist services market, we are proud to supply one of the largest and most complete hire fleets in the UK – including new and used machinery, as well as bespoke solutions. The versatility of our product range, combined with our tailorable service, facilitates our ability to customise products to meet the specific requirements of your site.

With our cable pulling winches able to pull up to 10 tonnes, as well as bond lengths of up to 1000 metres readily available and even bond lengths greater than 1500 metres being successfully used for some unique applications, we’re sure you’ll find that the capabilities of our machinery to be truly unmatched. Our experienced team can also provide you with serving, repair work and testing to ensure that your winches are always performing at their best.

AW1000 Cable Assist Winch

  • Line Speed
    • 55m/min on large capstan
    • 26m/min on small capstan
  • Line Pull
    • 500kg Line Pulling on Large Capstan
    • 1,000kg Line pull on Small Capstan
AW1000
CW3000 (2)

CW3000 – 3Tonne Capstan Winch

  • Line Speed
    • 0-12m/min at 3Tonne
    • 0-30m/min at 1Tonne
  • Line Pull – 3T Pulling
  • Engine – water cooled Diesel Engine

Thompson 21/60

  • Dimensions – 3050 x 1680 x 1400
  • Max Rope Capacity – 330m x 16mm
  • Line Speed – 0-12m/min
  • Line Pull – 3T Pulling and Lifting
Thompson - 3Tonne (2)
KW3000

KW3000 Grundowinch

  • Dimensions – 3380 x 1600 x 1250
  • Weight – 1560kg
  • Max Rope Capacity – 1000m x 10mm
  • Line Speed – 13m/min
  • Data Logger and Printer Optional

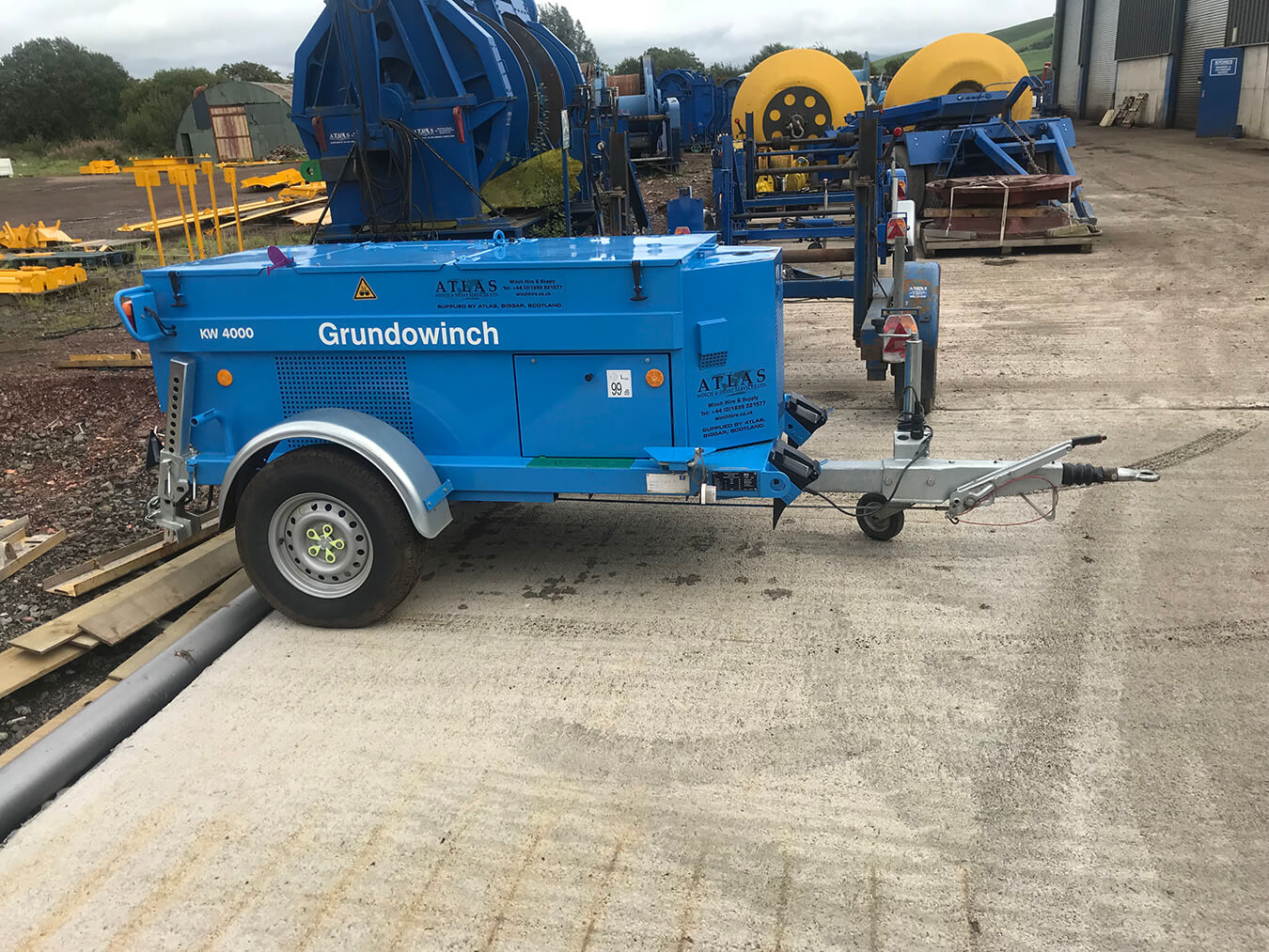

KW4000 Grundowinch

  • Dimensions – 3380 x 1650 x 1250
  • Weight – 1430kg
  • Max Rope Capacity – 850m x 11mm
  • Line Speed – 15m/min
  • Data Logger and Printer Optional
KW5000

KW5000 Grundowinch

  • Dimensions – 4200 x 1600 x 1250
  • Weight – 1650kg
  • Max Rope Capacity – 650m x 12mm
  • Line Speed – 40m/min
  • Data Logger and Printer Optional

KW5010 Grundowinch

  • Dimensions – 4700 x 1820 x 1450
  • Weight – 2250kg
  • Max Rope Capacity – 1250m x 12mm
  • Line Speed – 40m/min
  • Data Logger and Printer
KW5010
RW10 Tracked

RW10 Grundowinch Tracked

  • Dimensions – 4500 x 1850 x 1450
  • Weight – 3350kg
  • Max Rope Capacity – 1000m x 16mm
  • Line Speed – 79m/min
  • Data Logger and Printer

KW10 Grundowinch

  • Dimensions – 4700 x 1820 x 1450
  • Weight – 3200kg
  • Max Rope Capacity – 1000m x 14mm
  • Line Speed – 30m/min
  • Data Logger and Printer
KW10
RW10

RW10 Grundowinch

  • 10Tonne Capacity
  • Max Rope Capacity – 1000m x 16mm
  • Line Speed – 30m/min
  • Data Logger and Printer
  • Dimensions – 4500 x 1850 x 1450
  • Weight – 3350kg

RW20 Grundowinch – Trailer Mounted

  • 20Tonne Capacity
  • Max Rope Capacity – 1200m x 22mm
  • Line Speed – 17m/min
  • Data Logger and Printer
  • Dimensions – 5000 x 2400 x 1750
  • Weight – 7600kg
RW20 TRAILER MOUNTED
RW20 Tracked

RW20 Grundowinch – Tracked Mounted

  • 20Tonne Capacity
  • Max Rope Capacity – 2000m x 22mm
  • Line Speed – 30m/min
  • Data Logger and Printer
  • Radio Remote Control
  • Dimensions – 4000 x 2400 x 2250
  • Weight – 9200kg

3tonne, Tesmec AMC402

  • Dimensions – 3.6m x 1.78m x 1.4m
  • 1st Layer Capacity – 3,000kgs
  • Rope Capacity – 400m x 14mm
  • Gross Weight – 1,150kgs
  • Options – Additional 1tonne side capstan
  • Diesel Engine
3Tonne Tesmec AMC402
